HRTU 420/2NC.2-L-S8 - 50113981

Dane podstawowe

Termin realizacji

  • Czas oczekiwania: 3 tygodnie

Jeżeli termin realizacji nie spełnia Państwa oczekiwań prosimy o kontakt, postaramy się go skrócić Skontaktuj się z nami.

Czas dostawy gdy brak na magazyne
3 tygodnie
Gwarancja
24
Producent
LEUZE ELECTRONIC

  • Basic data
    • Series420
    • Operating principleDiffuse reflection principle with background suppression
  • Optical data
    • Operating rangeGuaranteed operating range
    • Operating range0.1 ... 1 m
    • Shape of sound lobeWide
    • Direction of beamFront
  • Electrical data
    • Protective circuitPolarity reversal protection, Overvoltage protection, Short circuit protected
    • Performance data
      • Supply voltage UB12 ... 30 V, DC
      • Residual rippleFrom UB
    • Inputs
      • Number of teach inputs1 Piece(s)
    • Outputs
      • Number of digital switching outputs1 Piece(s)
      • Switching output 1
        • Switching elementTransistor, NPN
        • Switching principleNC (normally closed)
  • Timing
    • Switching frequency10 Hz
    • Ultrasonic frequency240 kHz
    • Response time50 ms
  • Connection
    • Connection 1
      • Type of connectionConnector
      • Thread sizeM8
      • MaterialPlastic
      • No. of pins4 -pin
      • EncodingA-coded
  • Mechanical data
    • DesignCubic
    • Dimension (W x H x L)20 mm x 42 mm x 15 mm
    • Housing materialPlastic, PE
    • Net weight10 g
  • Operation and display
    • Type of displayLED
    • Number of LEDs1 Piece(s)
    • Operational controlsTeach button
  • Environmental data
    • Ambient temperature, operation-10 ... 60 °C
    • Ambient temperature, storage-40 ... 85 °C
  • Certifications
    • Degree of protectionIP 67
    • Protection classIII
    • Certificationsc UL US
    • Standards appliedIEC/EN 60947-5-2
  • Classification
    • Customs tariff number85365019
    • eCl@ss 8.027272803
    • eCl@ss 9.027272803
    • ETIM 5.0EC001849
    • ETIM 6.0EC001849

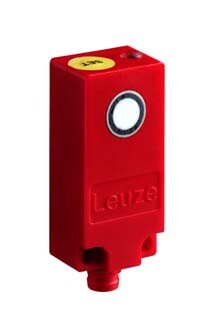

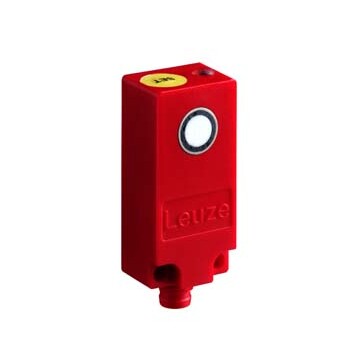

Zdjęcie poglądowe 50113981.jpg
Karta katalogowa DS_HRTU420_de_P.pdf
